Features and Advantages:
- ALI Certified Lift
- 10,000 lb. Capacity
- Column design with special Double “S” bends increasing column strength
- Can be installed Symmetrically OR Asymmetrically
- Overall Height: 135 7/8” (11’ 3 7/8”) or 139 7/8” (11’ 7 7/8”) (Cylinder Height 12’ 4”)
- Padded Carriages
- 3-Stage Front Arms & 2-Stage Rear Arms
- Single-Point Lock Release
- Powder Coat Finish
- Includes Double Screw-up Adapters
- Free 8 Piece Truck Adapter Set
- Mounting Hardware Included
- Standard with Premium ALLY Power unit
- Shipping Weight: 1,850 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Powerunit Warranty

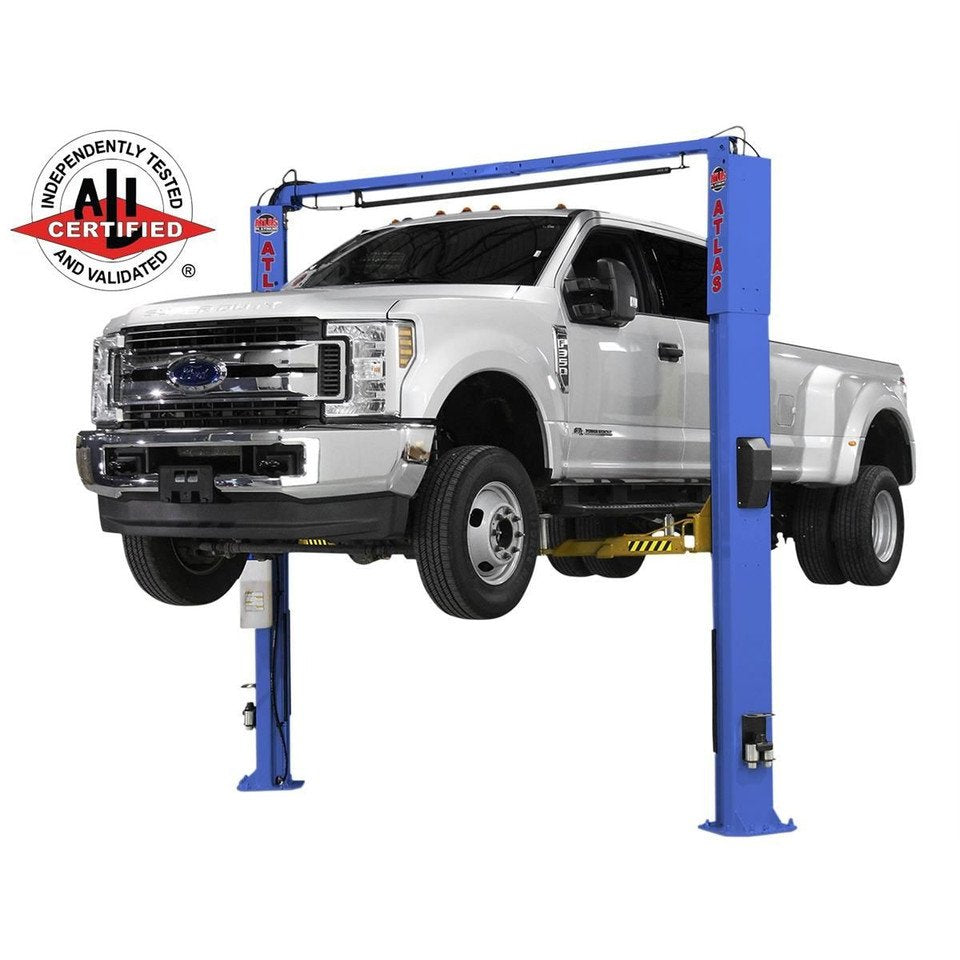

The Atlas® Platinum PVL10 is a 2-post 10,000 lb. capacity ALI Certified commercial grade lift tailored for professional shops. Engineered with the renowned Double S column design and symmetric columns, the Platinum PVL10 offers unmatched reliability. Tens of thousands of lifts utilizing the Double S column design have been sold worldwide over the past two decades. The patented Double S column design has now expired.
The Atlas® Platinum PVL10 can be installed symmetrically or asymmetrically, providing flexibility and convenience. In the asymmetric configuration, vehicle entry and exit are easier, reducing the risk of dings or scratches on the door. With symmetric installation, the wider space between columns accommodates larger trucks and SUVs. Both configurations offer superior vehicle lift point support with the three-stage front arm design.
Featuring three-stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads on the carriage, and rubber column guards, the Atlas® Platinum PVL10 ensures efficient and safe lifting.
Equipped with the premium ALLY Hydraulic AL2850 Power Unit, certified for electrical compliance in the US and Canada, the PVL10 delivers consistent torque with reduced heat generation. The power unit comes with an industry-leading two-year limited warranty.
Atlas® Platinum PVL10 Specifications:
- Capacity: 10,000 LB.

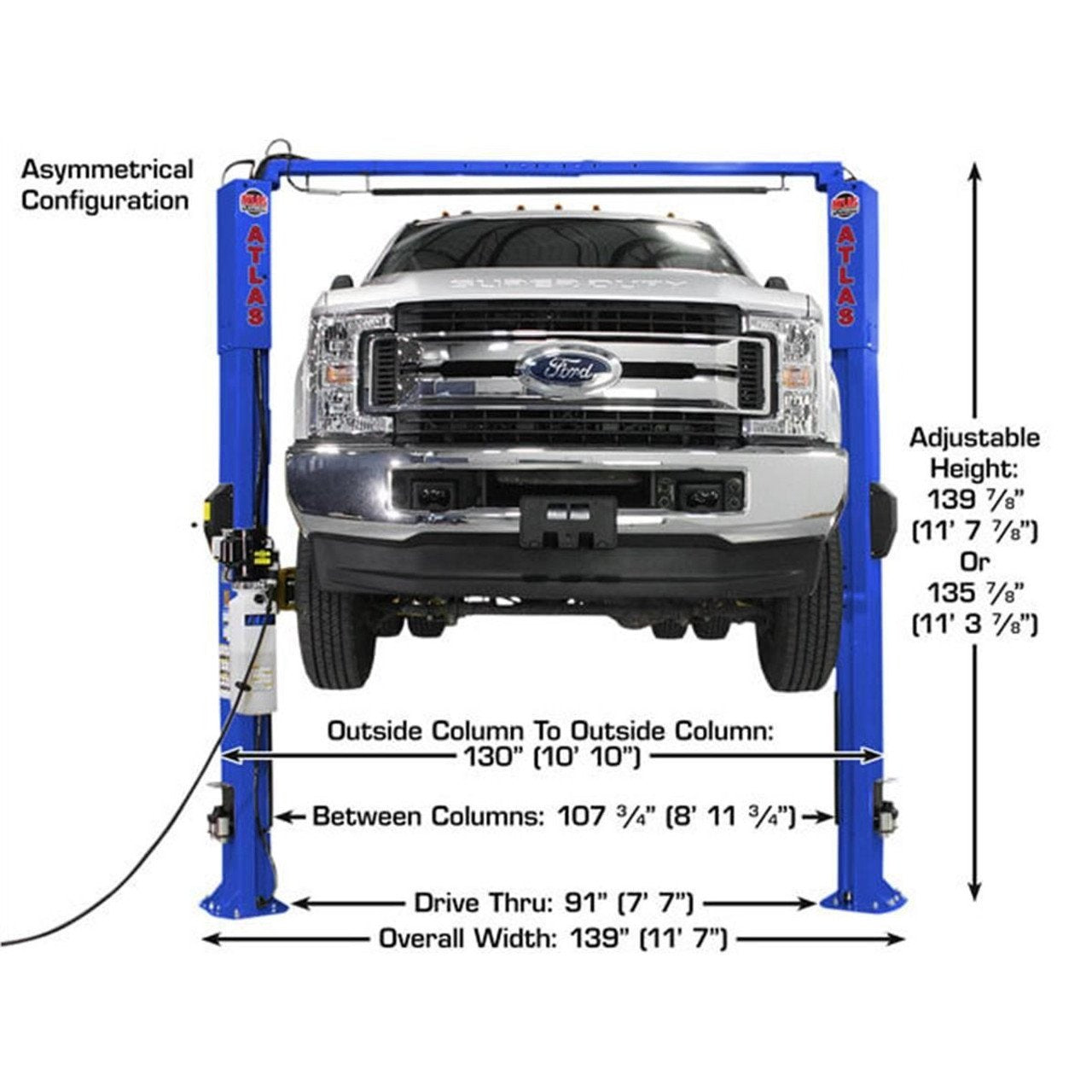

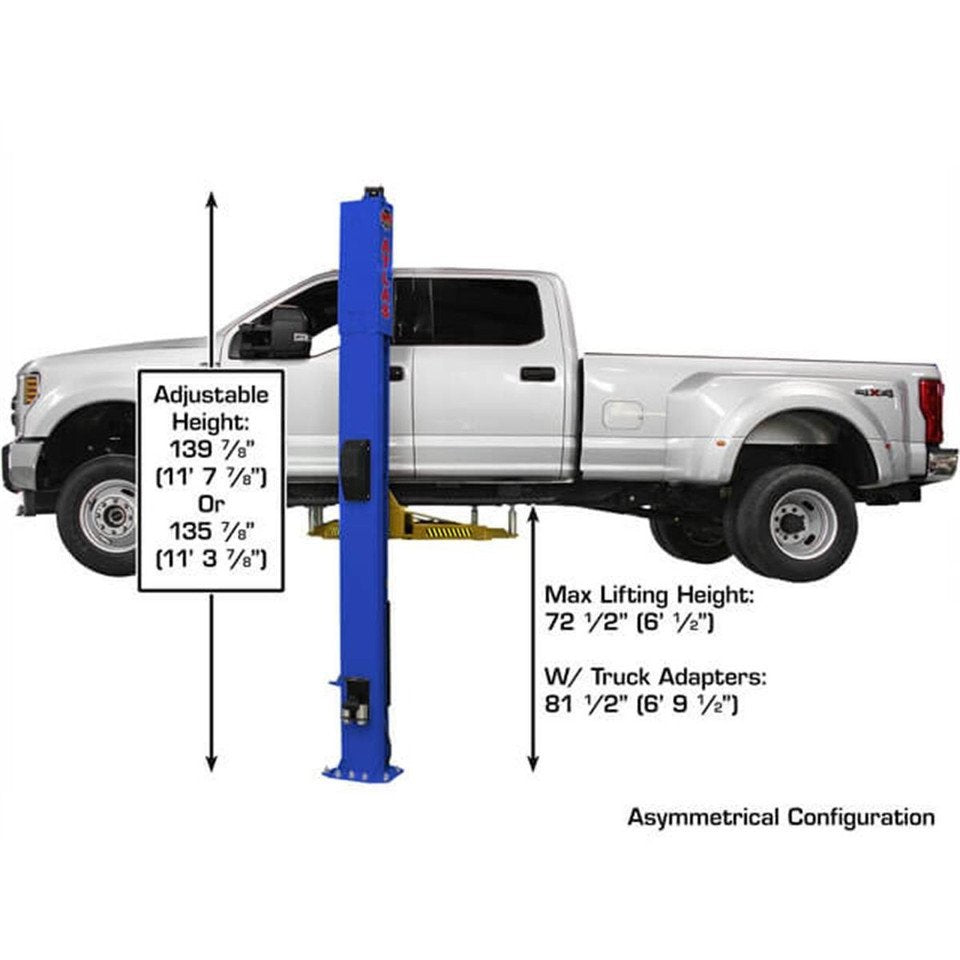

- Overall Height: 135 7/8″ (11’ 3 7/8”) or 139 7/8” (11’ 7 7/8”) (CYLINDER EXTENDS TO 12’ 4”)
- Overall Floor Width: 139″ (11’ 7”) Asymmetric / 137 1/2” (11’ 5 1/2”) Symmetric
- Outside Column to Outside Column: 130″ (10’ 10″) Asymmetric / 129 1/4” (10’ 9 1/4″) Symmetric

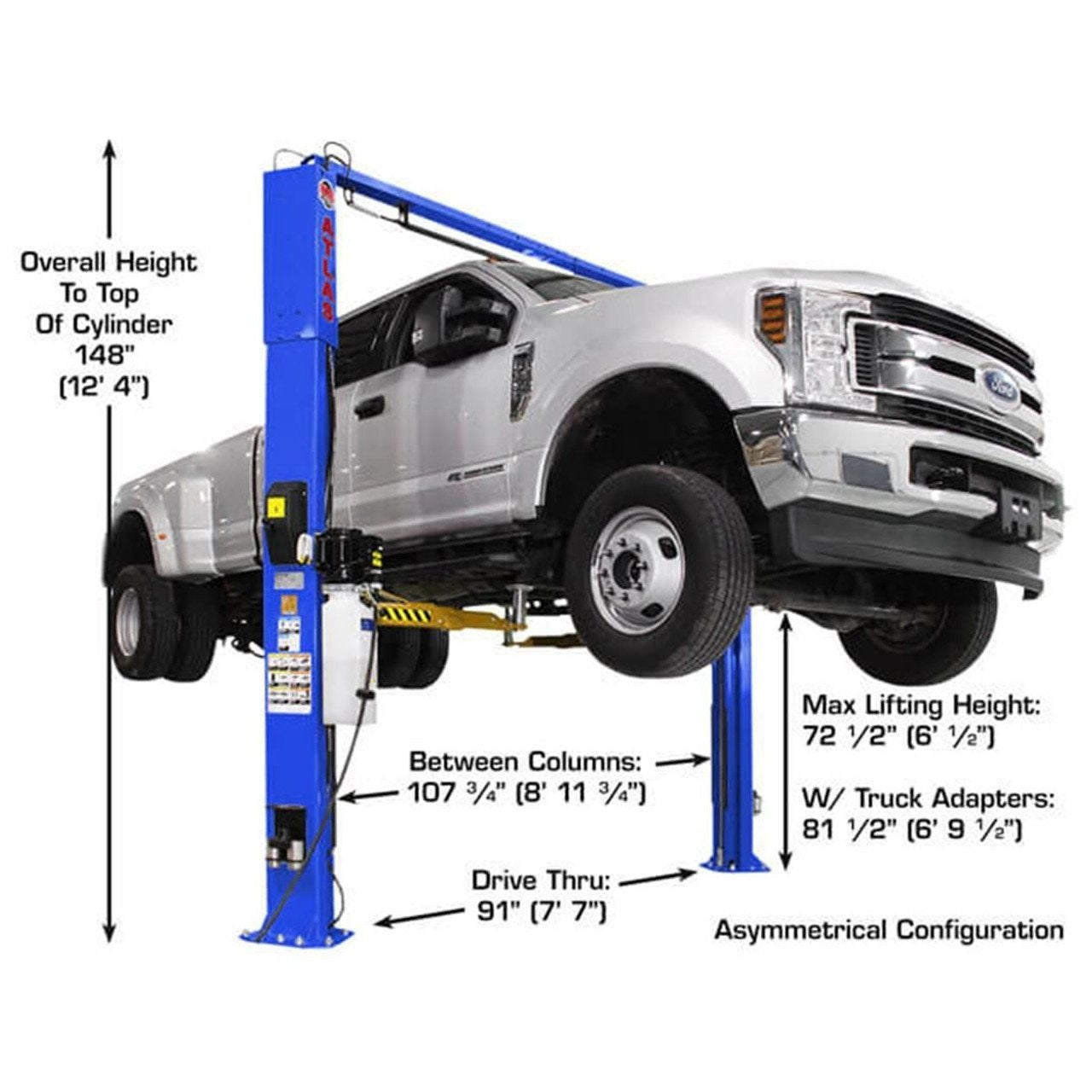

- Maximum Lift Height (Without Adapters): 72 1/2″
- Maximum Lift Height (With Adapters): 81 1/2″
- Minimum Arm Height: 4″
- Inside Column: 107 3/4” (8’ 11 3/4”) Asymmetric / 112 1/2″ (9’ 4 1/2″) Symmetric
- Drive Thru: 91” Asymmetric / 99 1/2” Symmetric
- Column Size: 7″ x 10 1/4″
- Column Thickness of Steel: 6mm
- Base Of Lift: 15″ x 18″
- Motor/Electrical Requirement: 220 volt single (1) phase (A 30 amp breaker is recommended)
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 1,850 LBS.
- Adapter Heights: 4 Each 3”, 6”
- Arm Hole/Adapter Peg Size: 2”
- Requires a minimum of 4″ of concrete with a 3000 psi rating.
