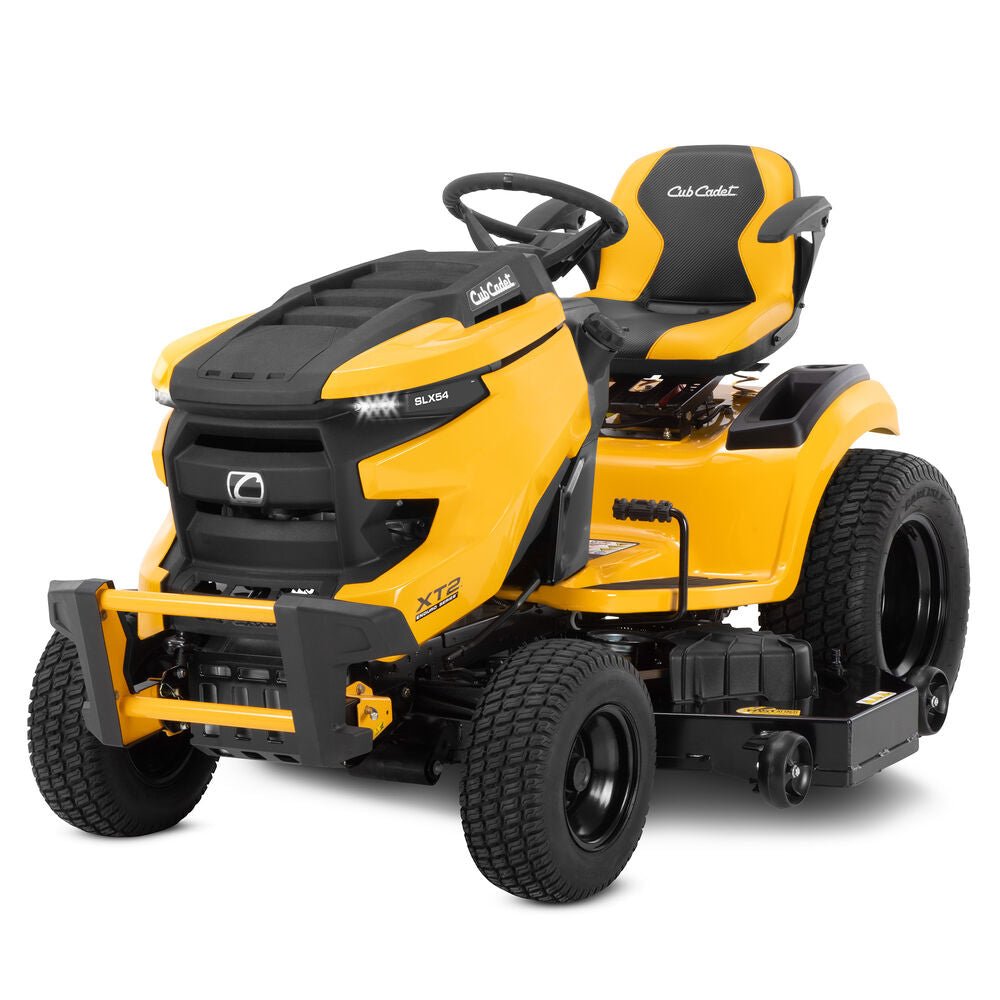

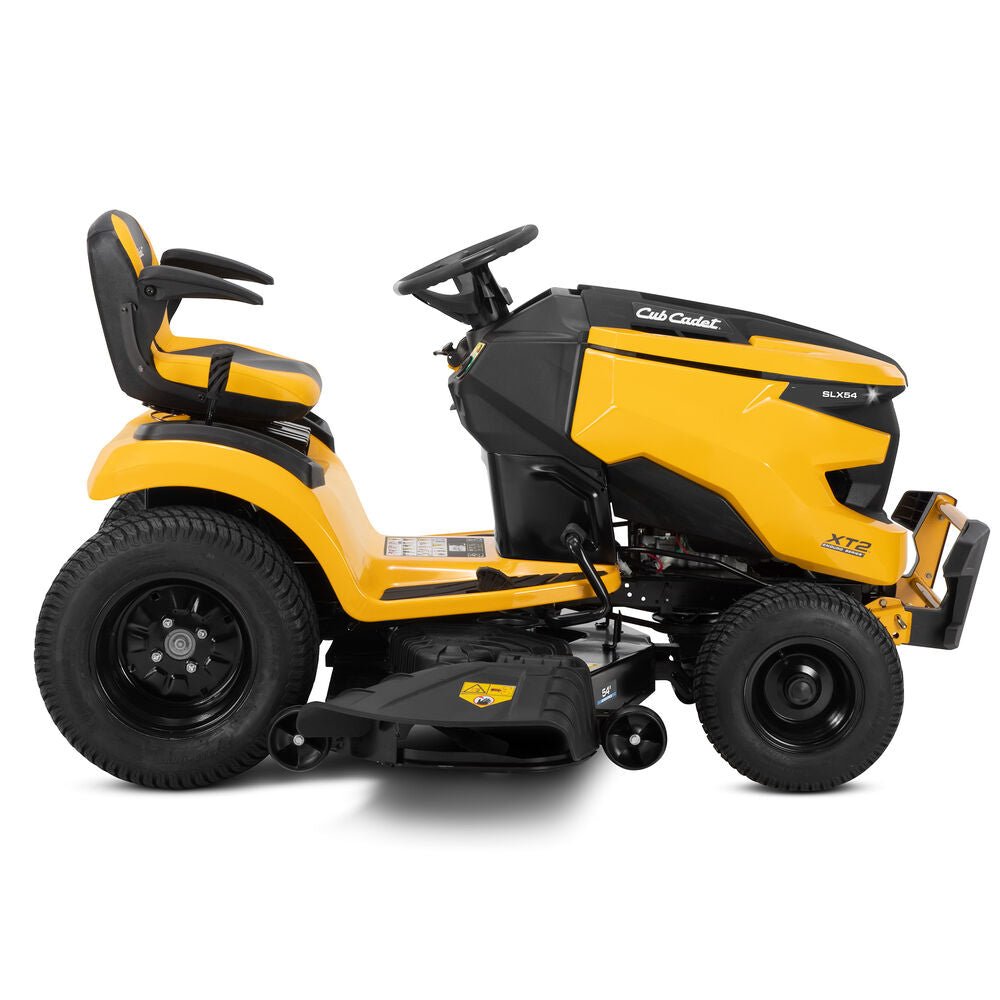

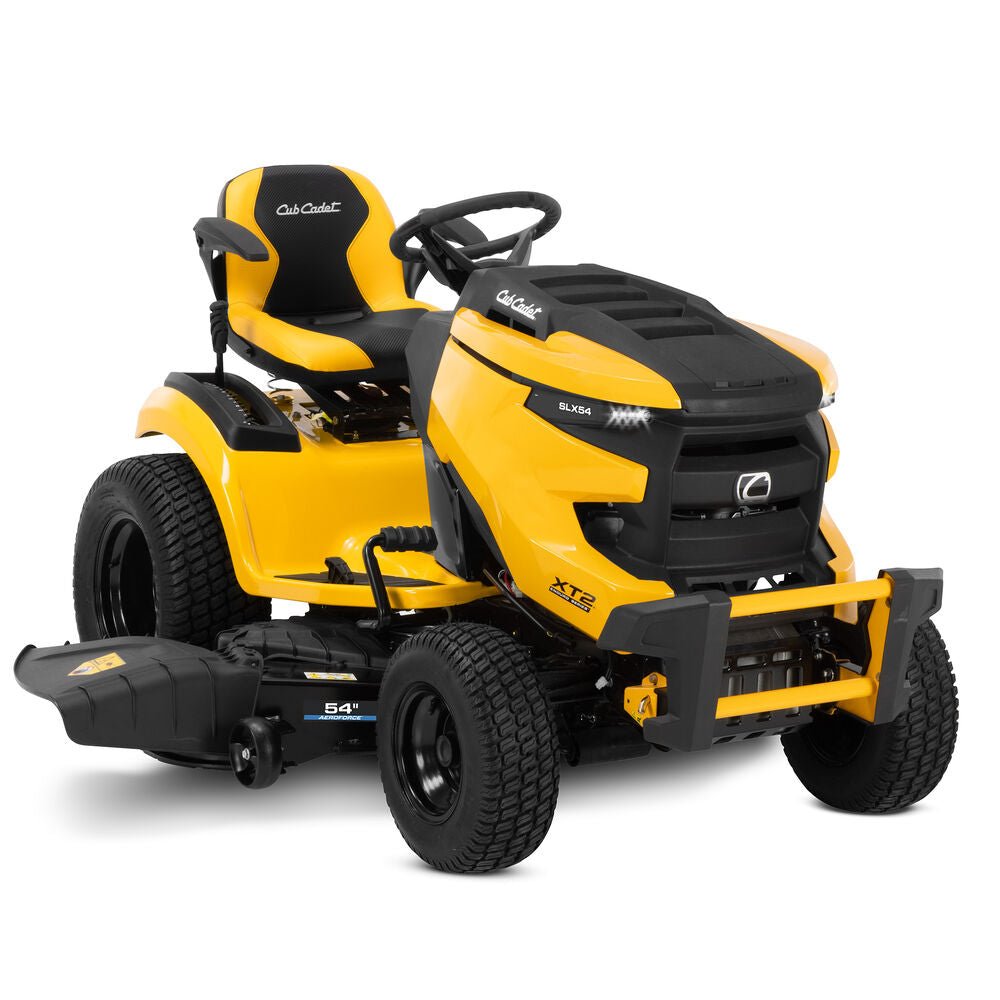

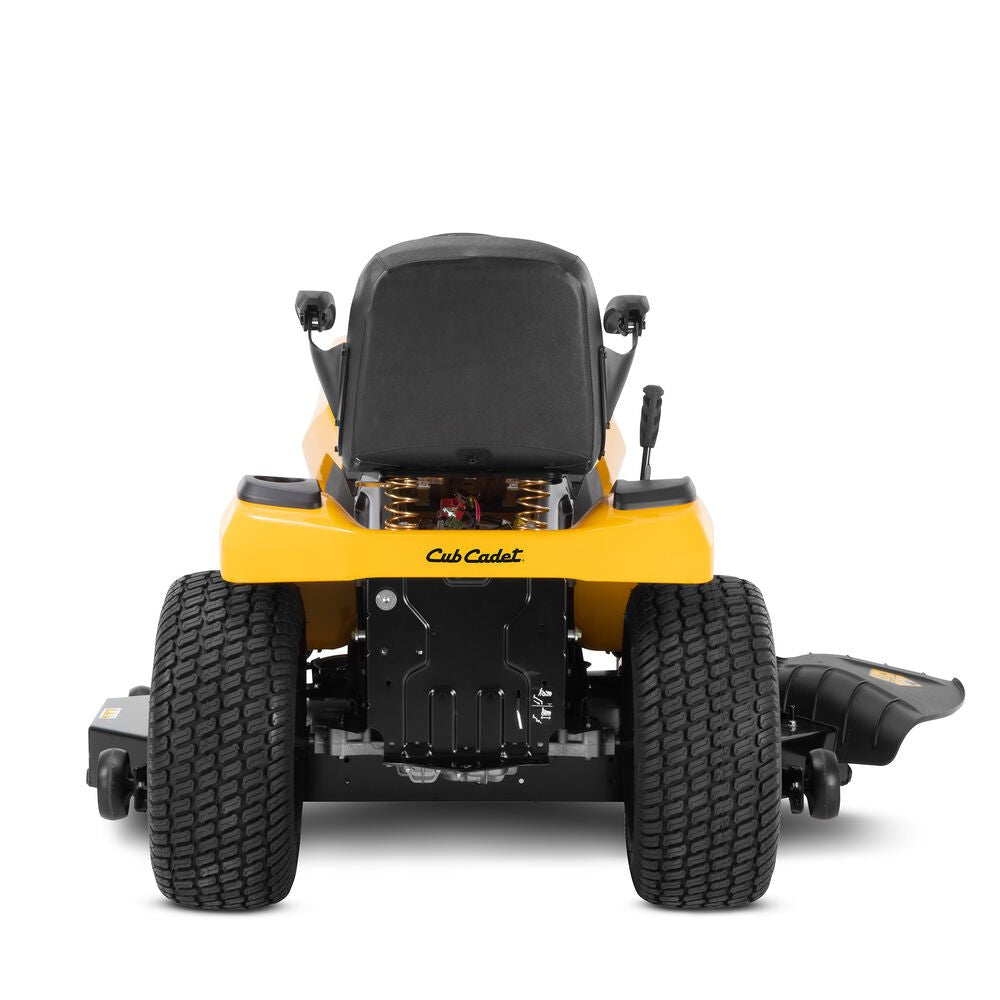

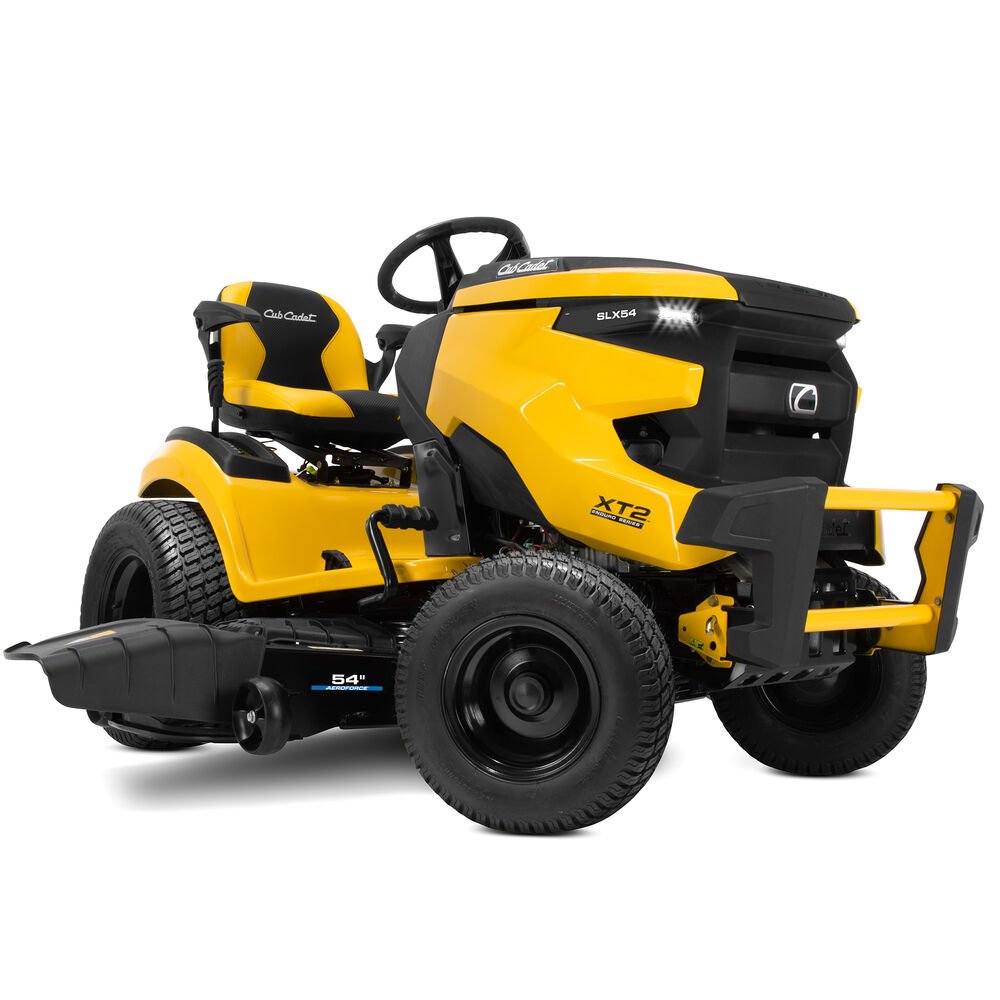

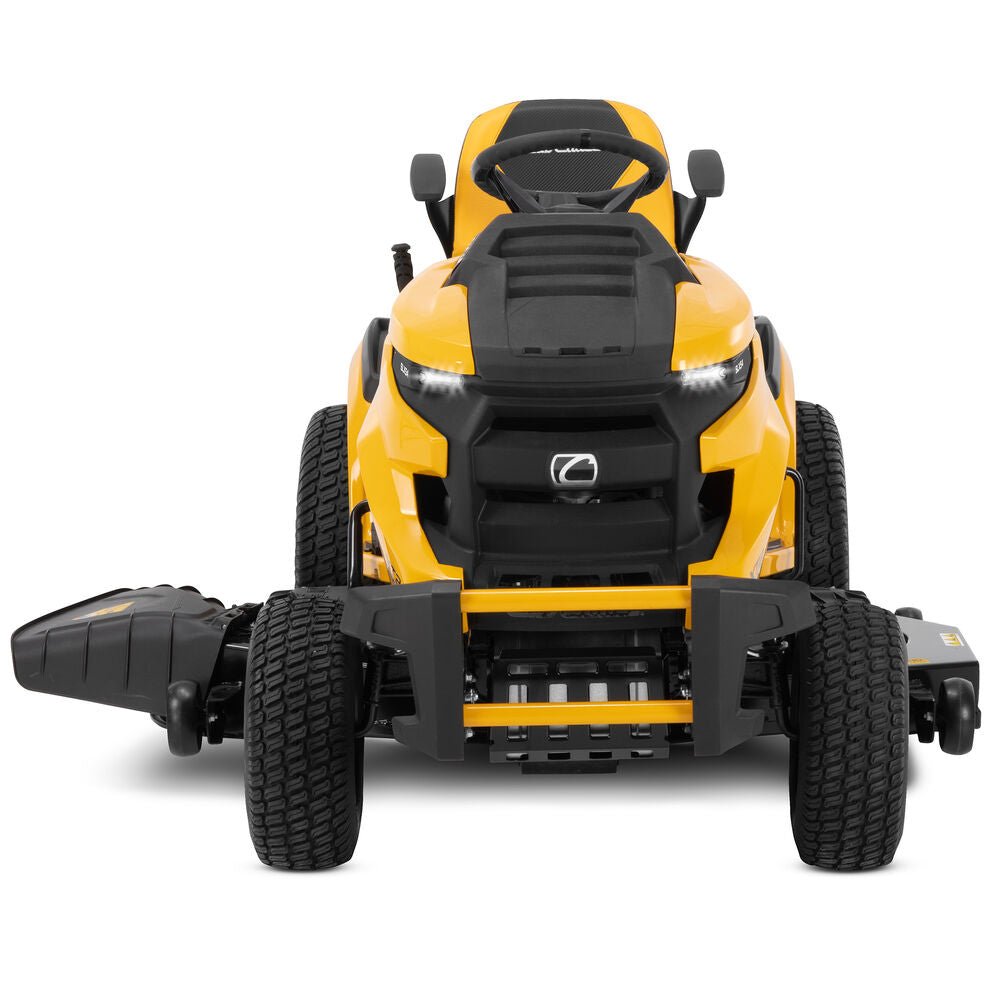

Power & Precision For The Bigger Challenges
Built in America since ‘61 and backed by the industry’s strongest warranty, Cub Cadet® lawn and garden tractors all come standard with the strongest cutting systems for mowing performance, refined ergonomics designed around you and an array of attachments and accessories for year-round versatility and utility.
Features:
- A strong 24 HP/725cc twin-cylinder Kohler® HD engine is designed to deliver reliable power to tackle your yard.
- 54-in. strong AeroForce™ fabricated deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness.
- Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
- Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
Product Specifications:
Engine
Engine Brand Kohler® Engine Model 7000 Series HD Engine Model Number KT735 Engine Displacement 725cc Engine Output 24HP Starter Type Electric Fuel Tank Capacity 3.0 gal. US (11.36 L) Cylinders Twin Engine Start Ignition Key Engine Oil Capacity 2.0 qts. US (1.89 L) Lubrication Fully pressurized Charging System 12 amp regulated Fuel Gage No Governor Mechanical Choke Choke-a-matic Air Filter Single Element Oil Filter Yes Fuel Delivery Carburetor Battery
Battery 210 CCA Battery Type AGM (Absorbent Glass Mat) Battery Voltage 12V Drive System
Transmission Tuff Torq® K46 Forward Speed 5.5 MPH / 8.6 KMH Reverse Speed 3 MPH / 4.8 KMH Rear Axle 1″ Drive System Hydrostatic Transmission Control Foot Pedal Transmission Housing Cast Aluminum Rear Differential Lock No Cutting Deck
Deck Cutting Width 54 in Deck Wash Yes Deck Material 11-gauge steel Deck Engagement (PTO) Electric Deck Construction Fabricated Blade(s) 3 Deck Lift Manual Cutting Height Range 1″ – 4″ Anti-Scalping 4 gauge wheels Deck Positions 12 Warranty
Warranty 3-year unlimited hours Frame Warranty 5-year unlimited hours Front Axle Warranty 5-year unlimited hours Deck Shell Warranty Lifetime limited Commercial Warranty No Chassis
Frame Robotically welded Turning Radius 16″ Bumper Brush Guard Rear Tow Hitch Yes Corrosions Protection Yes Front Pivot Bar Cast Iron Controls
Cruise Control Yes Brakes Disc Comfort
Seat Type 15″ high-back Armrests Yes Seat Adjustment Lever Floor Mats Rubber Wheels
Bearing Type Ball Bearing Rear Tires 22″ x 9.5″-12″ Front Tires 16″ x 6.5″-8″ Tire Tread Turf Master Additional Specifications
Mulch Kit Available separately Headlight(s) Dual LED Cup Holder Yes Operator Presence System Yes Model Number 13A5A2TMA10 Specifications
Series XT2® Enduro Series™
