7 Different Ways To Charge DELTA Pro 3
The EcoFlow DELTA Pro 3 can be quickly charged anywhere, anytime with these methods.
1. AC Wall Outlet
Experience lightning-fast AC charging with your DELTA Pro 3, supporting 120V/240V AC fast charging.
2. Dual Solar Charging
Use the power of the sun to fire up your DELTA Pro 3, which comes with up to 2600W of solar input using the High-PV Solar Input (1600W) and the Low-PV Solar Input (1000W).
3. Generator
Pair with your existing third-party gas generator or the for an industry-best 3200W DC charging.

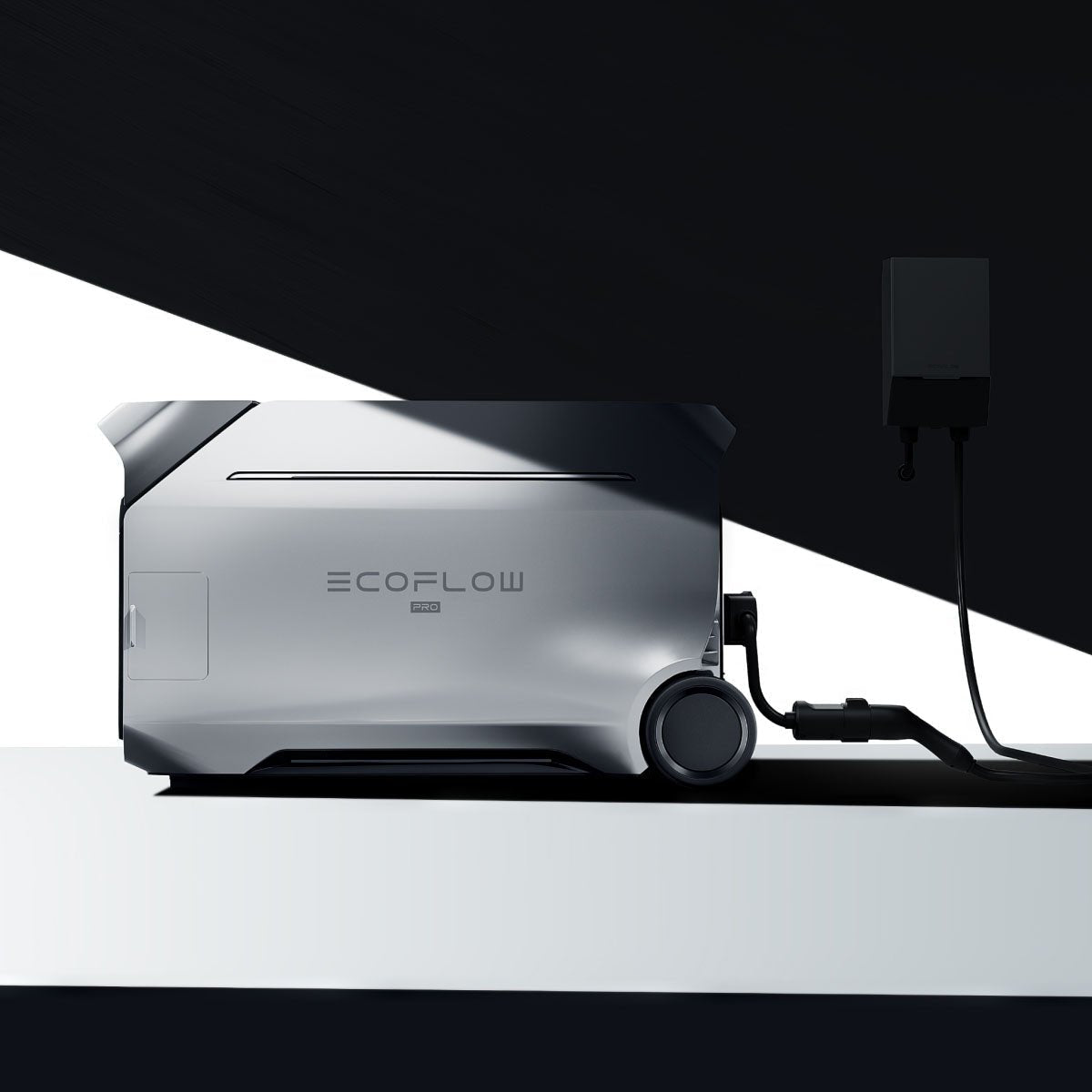

4. EV Charging Piles – Up To 80% In 50 Minutes
Utilize Level 2 EV charging piles to power up your EcoFlow DELTA Pro 3, boasting 4000W charging for seamless readiness at every turn.
5. Smart Home Panel 2
Connect with the for automatic, fast charging, up to 4000W. Benefit from X-Stream charging while enjoying smart savings by charging during low-cost electricity hours.
6. EcoFlow 800W Alternator Charger
Keep your on-the-wheel adventures powered while driving, efficiently charge up to 800W with for a sustained power.
7. Automobile Cigarette Lighter
Utilize your vehicle’s built-in cigarette lighter port to conveniently charge while you drive, ensuring your EcoFlow DELTA Pro 3 is always ready for action!
What Can The DELTA Pro 3 Charge?
Experience ultimate off-grid power with the DELTA Pro 3. Whether you’re camping, working remotely, or facing a power outage, DELTA Pro 3 keeps you powered up.
Pair the EcoFlow DELTA Pro 3 With The Smart Home Panel 2 And Never Worry About Losing Power
With DELTA Pro 3 and the, when the grid goes down, your power stays on. Use these two revolutionary products to power multiple high-demand appliances, like a 3-ton central air conditioning unit or a HP water pump at the same time.
How It Works
The Smart Home Panel 2 acts as the control center for your entire home backup system. It features an automatic switch that seamlessly transfers your home to backup power in the event of an outage. The panel itself is made up of two sections: a distribution panel and a battery connection box. The distribution panel uses special switches, called relays, which you can control remotely to manage your backup system.
Versatility In Powering Your Home
The Smart Home Panel 2 is designed to work alongside your existing electrical system. It connects to your main electrical panel to access grid power when available. In addition to grid power, the Smart Home Panel 2 can also be connected to a generator through a special inlet box. This allows you to easily use your generator as a backup power source. The panel is intelligent and can automatically manage all of these power sources, including grid power, batteries, solar panels, and even a generator.
Smart Home Panel 2 Capacity
The EcoFlow Smart Home Panel 2 connects up to 3 sets of DELTA Pro 3 power stations (and each inverter supports up to 2 battery packs). The panel serves as an auxiliary distribution point for electricity from your home’s main panel and provides extra breakers for your backup loads.
Monitor & Control At Your Fingertips
The EcoFlow smartphone application lets you track your energy use daily, monthly, and annually, and also manage system settings. This whole home backup system provides peace of mind during emergencies, power cuts, high energy demands, and more.
EcoFlow strongly recommends the EcoFlow Smart Home Panel 2 is installed by a professional EcoFlow-certified electrician.
DELTA Pro 3 Warranty
The EcoFlow DELTA Pro 3 comes with a 5-year warranty, with its LFP batteries lasting longer than 10 years with up to 4,500 cycles.

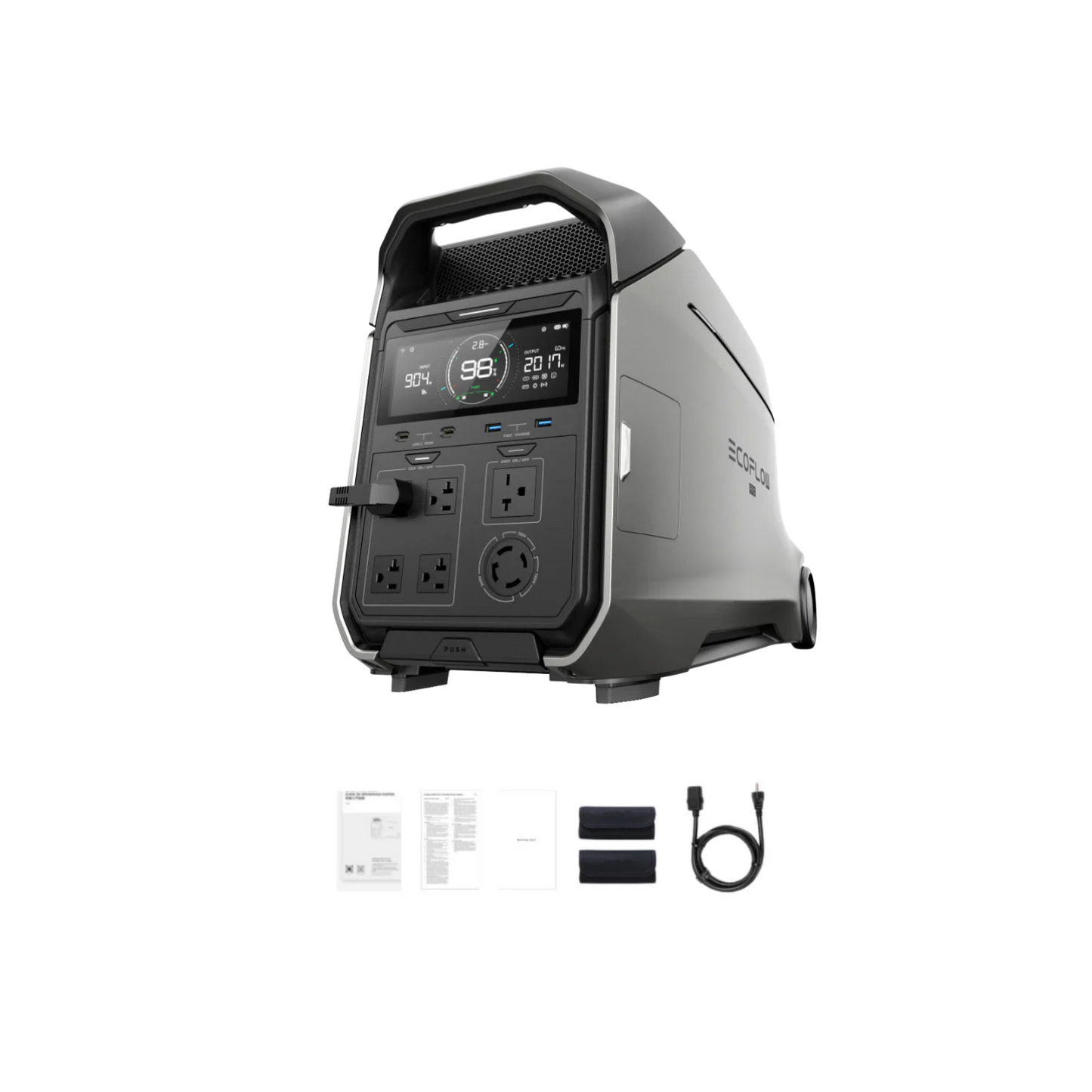

What’s Included
DELTA Pro 3
- 1 x EcoFlow DELTA Pro 3 Portable Power Station
- 1 x EcoFlow DELTA Pro 3 AC Charging Cable
- 2 x Handle Grip Covers
- 1 x Quick Start Guide
- 1 x Solar Installation Guide
- 1 x App Introduction
- 1 x Safety Guide
- 1 x Ecosystem Intro page
- 1 x Warranty Card
DELTA Pro 3 Smart Extra Battery (optional)
- 1 x EcoFlow DELTA Pro 3 Smart Extra Battery
- 1 x EcoFlow Extra Battery Cable
- 1 x Quick Start Guide
- 1 x Safety Guide
- 1 x Warranty Card
400 Watt Portable Solar Panel (Optional)
- 1 x EcoFlow 400W Portable Solar Panel
- 1 x Protective Case & Kickstand
- 1 x MC4 to XT60 Solar Charging Cable
- 4 x Snap Hooks
- 1 x User Manual
- 1 x Warranty Card
200W Portable Briefcase Solar Panel (Optional)
- 1 x Rich Solar MEGA 200 Watt Portable Solar Panel Briefcase
- 1 x Carry Case
- 1 x MC4 to XT60 Solar Charging Cable
- 2 x 19.6 Feet Solar Extension Charging Cables
Dual Fuel Smart Generator 4000 (optional)
- 1 x EcoFlow Dual Fuel Smart Generator 4000
- 1 x Breaker Bar
- 1 x Screwdriver
- 1 x Spark Plug
- 1 x Socket
- 1 x Double-Ended Spanner
- 1 x Oil Funnel
- 1 x Extra Battery Connection Cable
- 1 x LPG Hose
- 1 x Delta Pro to Smart Generator Adapter
- 1 x User Manual
- 1 x Warranty Card
Frequently-Asked Questions
Can the EcoFlow DELTA Pro 3 work with DELTA Pro Smart Extra Batteries?
Yes, DELTA Pro 3 works with the original DELTA Pro extra batteries.
Can the EcoFlow DELTA Pro 3 work with DELTA Max Smart Extra Batteries?
Yes, DELTA Pro 3 works with DELTA Max extra batteries.
Does DELTA Pro 3 support pass-through charging with solar and AC charging?
Yes, DELTA Pro 3 can be charged by AC or solar while simultaneously discharging.
Can DELTA Pro 3 run 120V and 240V at the same time?
No.
Does the Delta Pro 3 support the X-Boost function?
Yes, X-Boost can output 6000W.
How many batteries can be connected to a single Delta Pro 3?
A single Delta Pro 3 can connect to 2 extra batteries.
Can the DELTA Pro 3 output 240V and 120V at the same time?
No, you can only output 120V or 240V individually.
What is Bluetooth Standby Mode?
You can set the Bluetooth standby duration in the EcoFlow app. During the Bluetooth standby period, the Bluetooth module will remain on even when the product is turned off, allowing you to remotely turn on the product via Bluetooth on your phone.
However, the Bluetooth module consumes some power during standby. If you do not need this feature or wish to shorten the Bluetooth standby time, you can adjust the Bluetooth standby duration in the EcoFlow app.
Can DELTA Pro 3 connect to electric vehicle charging guns?
Yes, it supports Level 1/2 charging guns. You need to purchase a special adapter. The domestic charging port of the US specification machine usually only supports AC 120V 1800W charging (i.e., Level 1), but through the 5+8 special interface, coupled with the5+8 to 7-hole adapter, you can connect to a 220V charging gun for charging, thereby increasing the charging rate to 4kW (i.e., Level 2).
EcoFlow DELTA Pro 3 Specifications
General Specifications | |
| Color | Galactic Silver |
| Capacity | 4096Wh |
| Net Weight | 51.5 kg | 113.5 lbs |
| Dimensions | 695.5 x 341 x 410 mm | 27.3 x 13.4 x 16.1 in |
| WiFi 2.4GHz/Bluetooth/CAN | Supported |
| Smart Home Panel 2 Connections | Maximum 3 DELTA Pro 3 |

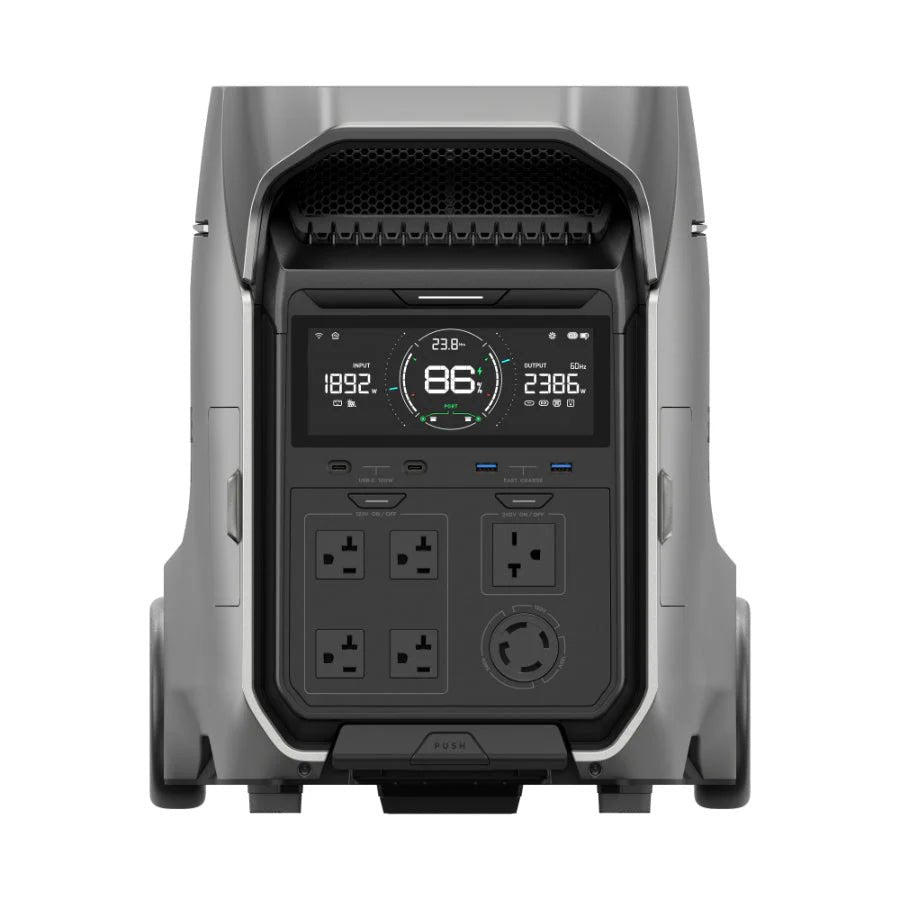

| LCD Screen | Yes |
| App Control | Supported |
| Warranty | 5 Years |
| Noise Level | 35dB (under 2kW，25°C) |

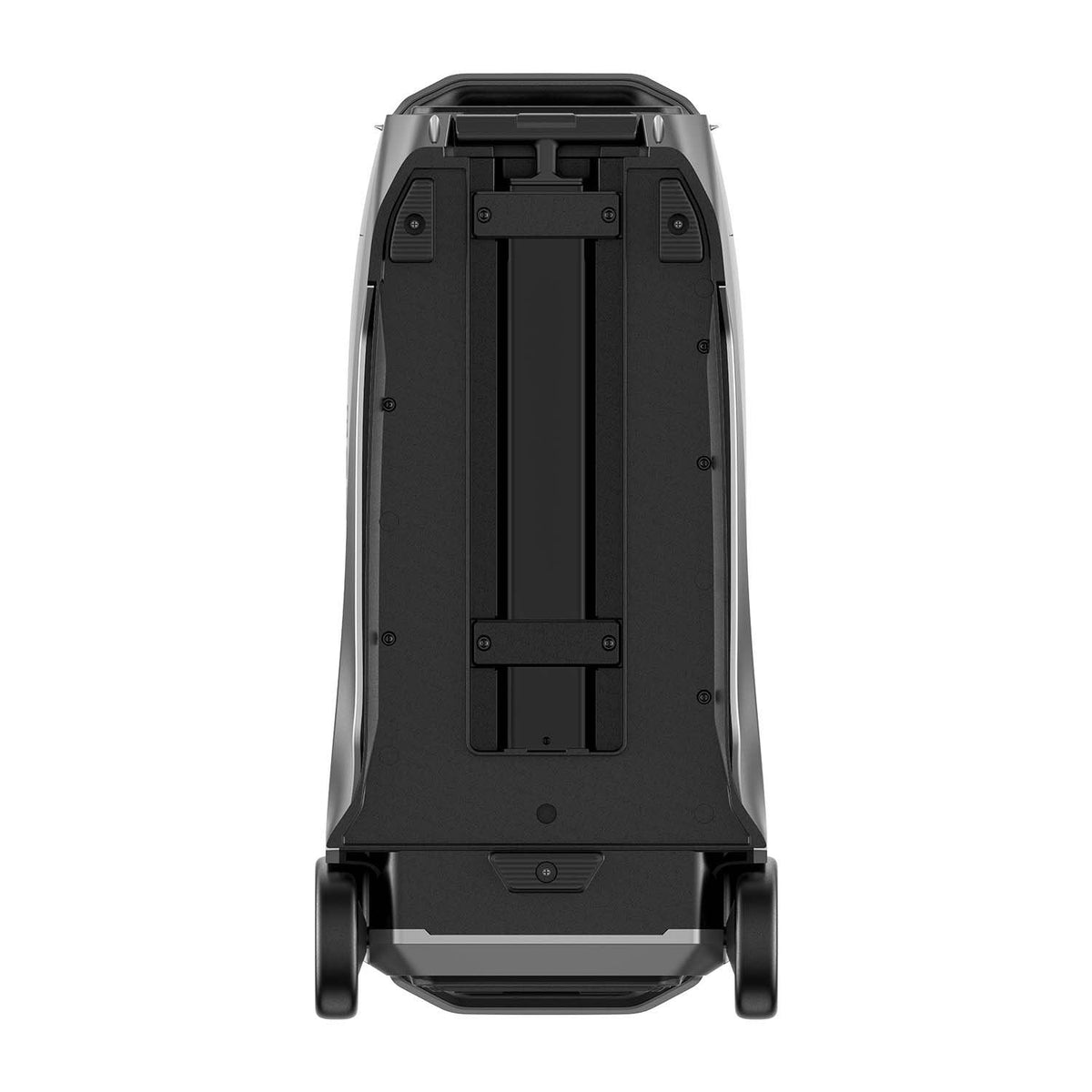

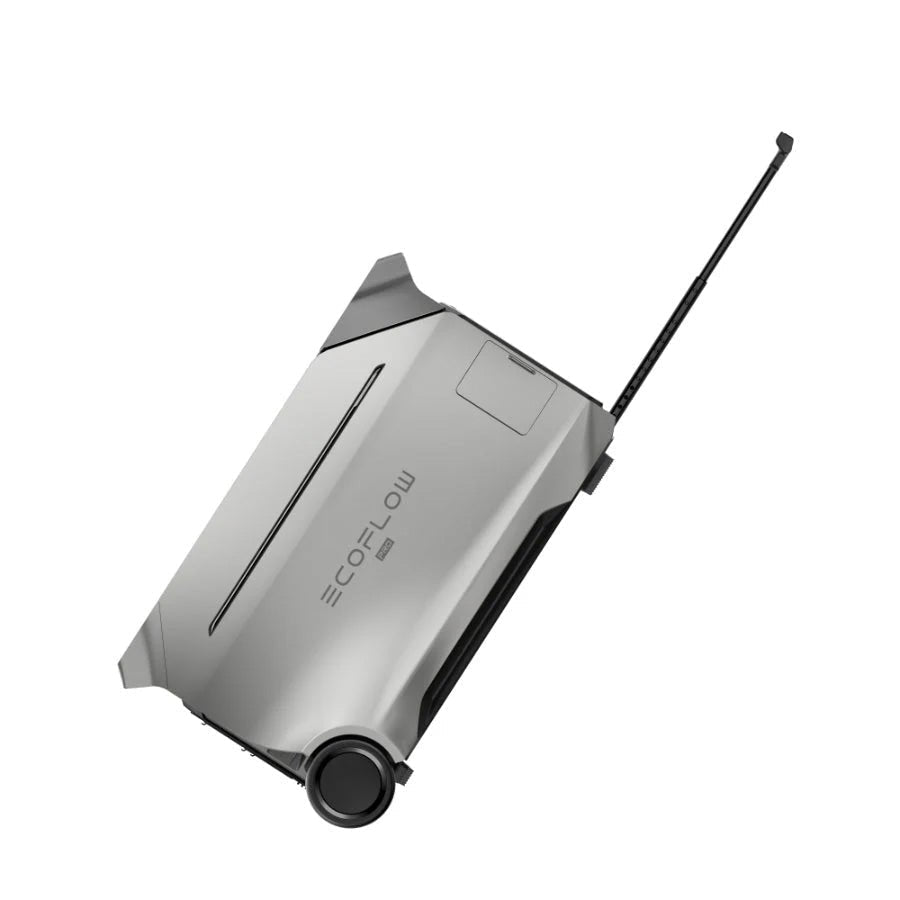

| Wheels & Tie Rod | Supported |
| Operating Temperature | Discharging temperature: -10°C to 45°C | 14° to 113°F Charging temperature: 0°C to 45°C | 32° to 113°F Storage temperature: -10°C to 45°C | 14° to 113°F |
Output Specifications | |
| Number of AC Outlets | 7 |
| Maximum Continuous Output | 4000W |
| Maximum Surge Output | 8000W, 400ms |
| Optional Extended Range | ~8KW with 2 x DELTA Pro 3 + 50amp Hub |
| Split Phase | Supported |
| Voltage | 120V/240V |
| X-Boost | 6000W Maximum |
| X-Fusion | 120V/1800W AC input, 120V/240V 4000W maximum AC output |
| X-Stream | Supported |
| EPS/UPS | 10ms, UPS |
| AC Power IN/OUT Port (Discharge Only) | 120/240V~16.7A 60Hz |
| Single Phase Low Voltage Socket | 4 x NEMA 5-20R, 120V/20A 1 x TT-30, 120V/30A Total 4000W |
| High Voltage Socket | 1 x L14-30, 120V/240V/16.7A 1 x NEMA 6-20R, 240V/16.7A Total 4000W |
DC Output Specifications | |
| USB-C | 2 x USB-C 5/9/12/15/20V 5A 100W Max |
| USB-A Fast Charging | 2 x USB-A, 5V 2.4A 9V 2A 12V 1.5A 18W Max |
| Car Power Output | Not Supported |
| 12V DC Output | 12.6V/30A 378W Total DC5521, 1X, 5A Max Anderson, 1X, 30A Max |
| Remote Control Port | 1 |
Input Specifications | |
| Utility Power Charging | C20 port, 100-240V~15A 50/60HZ 1800W Max @ 120V 3600W Max @ 240V Bypass Mode: 100-120V~15A 50/60HZ |
| Adjustable AC Charging Speed | Supported |
| EV Charger Charging (AC Power IN/OUT Port) | AC Power IN/OUT Port 4000W Max, 120/240V~20A 50/60Hz |
| Solar Input | 2600W Max 2 Ports: High PV: 30-150V/15A, 1600W Max Connect this port to solar panels using an Low PV: 11-60V/20A, 1000W Max Connect this port to solar panels using an |
| Car Input | 12V 8A Maximum 48V 20A Maximum |
| Generator Input | 3200W Maximum |
| 0-80% Charge Time | 50 minutes (1C Charging) |
|
Bond Charge Input (with 1 x Extra Battery) |
7000W Maximum |
Certifications & Protection | |
| Certifications | UL, CE, FCC, RoHS, TELEC New: UL9540+UL9540A |
| AC Surge | Anti-Surge, Enhanced Surge Protection |
| Battery Protection | Over Voltage Protection Overload Protection Over Temperature Protection Short Circuit Protection Low Temperature Protection Low Voltage Protection Overcurrent Protection |
| Battery Life Protection | Supported |
Battery Specifications | |
| Battery Type | LFP |
| Battery Life Cycle | 4000 cycles to 80% |

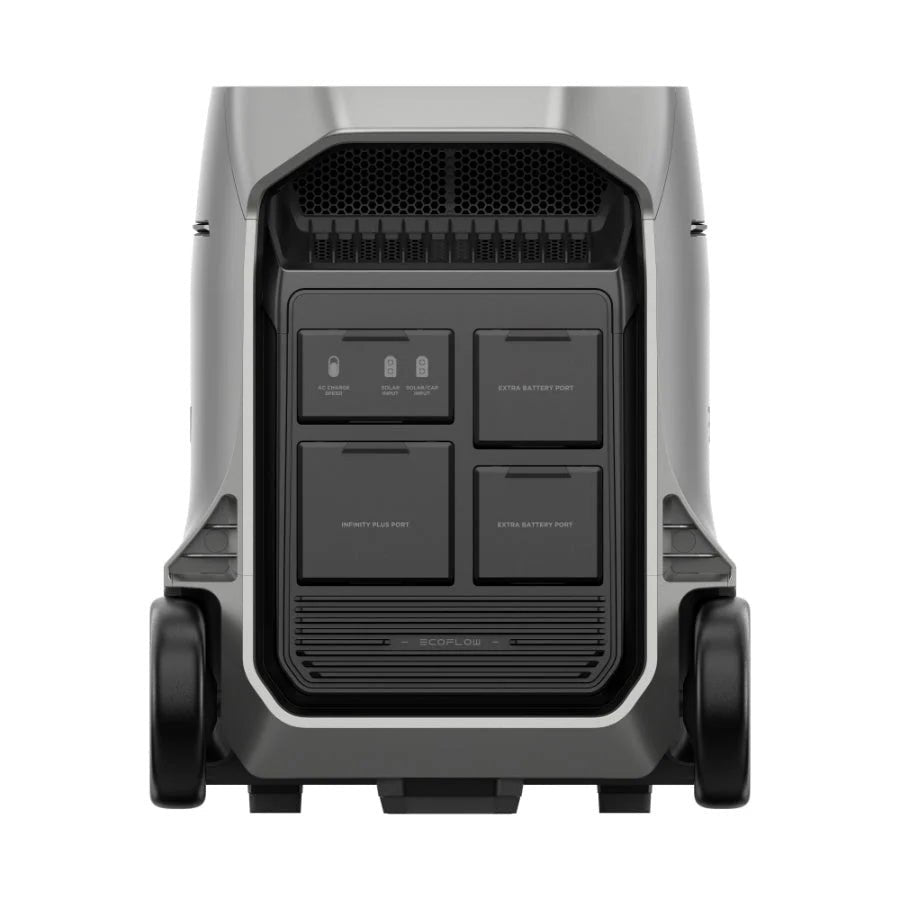

| Extra Battery Port | 2 x Ports | Support DP EB, DP3 EB |
| IP Rating For Battery Pack | IP65 |
| CTC Craftsmanship | Yes |
400W Portable Solar Panel Specifications | |
| Rated Power | 400W |
| Cell Type | Monocrystalline silicon |
| Efficiency | 22.40% |
| Dimensions | 42.0 x 94.1 x 1.0 in | 106.8 x 239.0 x 0.4 cm |
| Connector Type | MC4 Solar Connector |
| Open Circuit Voltage | 48V (Vmp 41V) |
| Short Circuit Current | 11A (Imp 9.8A) |
| Weight (Solar Panel) | 35.3 lbs | 16.0 kg |
| Weight (with Kickstand Case) | 41.9 lbs | 19 kg |
200W Portable Solar Panel Specifications | |
| Maximum Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 18.6V |
| Maximum Power Current (Imp) | 10.8A |
| Open Circuit Voltage (Voc) | 22.8V |
| Short Circuit Current (Isc) | 11.2A |
| Maximum System Voltage (Vmax) | 1000V DC |
| Weight | 34 lbs |
| Dimensions (folded) | 35 x 29 x 4 in |
| Dimensions (unfolded) | 55.7 x 36.6 x 1.4 in |
