Description

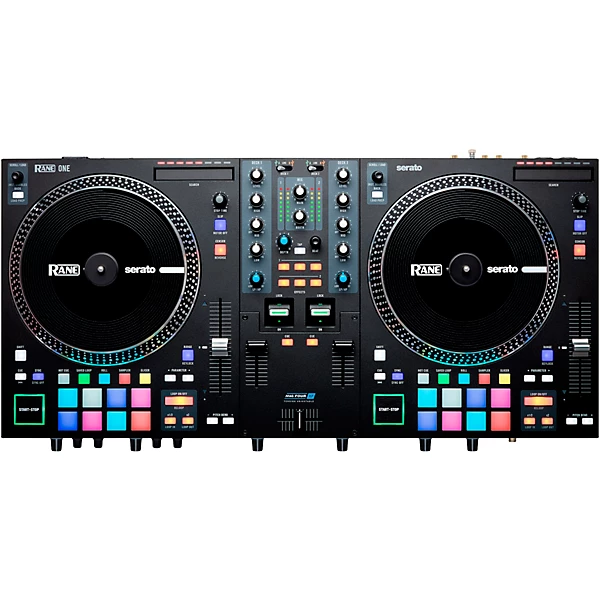

The RANE ONE professional motorized DJ controller provides an intuitive solution for taking your sets to the next level. RANE’s trusted reputation for build quality and audio engineering is on full display with high-torque, 7.2″ motorized platters and multi-function performance pads granting tactile mastery over your music. Connect nearly any source with comprehensive I/O options, then shape your signature sound using the onboard filters, EQs and Serato DJ Pro software integration. When creativity calls, the RANE ONE answers.
Motorized Platters Provide Responsive Feel
At the heart of the RANE ONE are two high-torque, 7.2″ motorized platters with customizable torque settings for dialing in the perfect feel. Their sturdy acrylic surfaces stand up to intensive scratching and mixing, conveying authentic vinyl-like control with the convenience of a digital setup. Start and stop each platter with a classic plunger-style button for an old-school touch.
Multi-Function Pads Unlock Advanced Techniques
Sixteen multi-function performance pads provide one-touch access to advanced DJ techniques. Trigger saved loops, set hot cues, roll sections of tracks, activate samples, slice beats and access Scratch Bank. With six dedicated effects buttons, activate and tweak combinations of software effects on the fly for dramatic builds, drops and transitions using the aluminum paddle controls.
Connectivity for Any Gig
The RANE ONE offers comprehensive connectivity for any DJ setup. Each deck features two USB ports to connect laptops, switchable line and phono inputs for CDJs or turntables, and XLR and RCA main outputs. Dual XLR/TRS microphone inputs, an aux input and booth output provide additional flexibility. Control two music sources at once or seamlessly transition between them with the MAG FOUR crossfader for precision cuts.
Shape a Signature Sound
Put your mark on the music with 3-band EQs, dedicated loop controls and high/low-pass filters on each deck. The RANE ONE integrates Serato DJ Pro software for tight control over an extensive library of tracks. Save and recall precise EQ settings, loops and more using Serato’s advanced features.
Features
- 7.2″ motorized platters with quick release acrylic disks
- Instant access software FX with two metal FX paddles
- Ultralight MAG FOUR crossfader
- High/Low-pass filter and 3-band EQ
- Dedicated loop controls
- Independent multi-mode performance pads including Serato
- Scratch banks
- Turntable style start/stop
- XLR main and booth outputs
- 2 line/phono inputs
- 2 TRS/XLR microphone inputs
- 2 USB computer connections
- Portable DJ controller
- Weight: 24 lb.
- Serato DJ Pro included
Specs
- Converters
- Cirrus Logic, 24-bit PCM, 48kH
- Digital Signal Processing
- 32-bit, Floating Pont, Double precision
- Dynamic Range (A-weighted, unity gain)
- ADC: 113dB
- DAC: 113dB
- CD Input to Analog Output: 110dB
- CD Input to USB Output: 113dB
- USB Input to Analog Output: 113dB
Inputs
- Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable)
- Analog Gain: 25dB
- Maximum Input: 110mV
- Gain Trim: Off to +26dB (unity at center)
- Tone Control: 2-band
- Aux Input (RCA stereo pair)
- Maximum Input: 4Vrms
- Dynamic Range (A-weighted): 114dB
- Gain Trim: Off to +12dB
- Tone Control: 2-band
- CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
- CD: Line
- Maximum Input: 4Vrms
- Gain Trim: Off to +12dB
- Tone Control: 3-band, full-cut to +10dB
- THD+N (20kHz BW @ 1kHz): 0.004%
- Phono: RIAA
- RIAA Curve: +/-0.25dB
- Gain (@ 1kHz): 31.5dB
- Maximum Input (@ 1kHz): 106mV
- Dynamic Range (A-weighted): 102dB
Outputs
- Main Outputs (XLR)
- Gain Trim: Off to 0dB
- Maximum Output: 8Vrms
- THD+N (20kHz BW @ 1kHz): 0.004%
- Frequency Response: Flat
- Booth Outputs (XLR)
- Gain Trim: Off to 0dB
- Maximum Output: 8Vrms
- THD+N (20kHz BW @ 1kHz): 0.004%
- Frequency Response: Flat
- Master Outputs (RCA stereo pair)
- Maximum Output: 4Vrms
- THD+N (20kHz BW @ 1kHz): 0.004%
- Frequency Response: Flat
- Headphone Outputs (1/4”/6.35 mm & 1/8”/3.5 mm TRS)
- Maximum Output Voltage: 4Vrms (no load): 50mW (50 ohms)
- Output Power: 0.004%
- Dynamic Range (A-weighted): 108dB
General
- Pads
- 16 velocity-sensitive multi-color back-lit pads (8 per deck, 8 modes each)
- Faders
- 1 MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
- 2 Standard channel faders with shared Contour and Reverse controls
- Connectors
- 2 XLR outputs (Main)
- 2 XLR outputs (Booth)
- 1 RCA stereo output pair (Master)
- 2 XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 1–2)
- 1 RCA stereo input pair (Aux)
- 1 1/4” (6.35 mm) TRS output (Headphones) (1) 1/8” (3.5 mm) TRS output (Headphones)
- 2 USB Type-B ports
- 1 IEC power cable input
Power
- Connection: IEC
- Voltage: 100–240V, 50/60Hz
- Consumption: 50W
Dimensions (WxDxH)
- 26.5″ x 13.6″ x 4.9″/674 x 345 x 124.3 mm
Weight (including platters)
- 23.55 lb./10.68 kg
