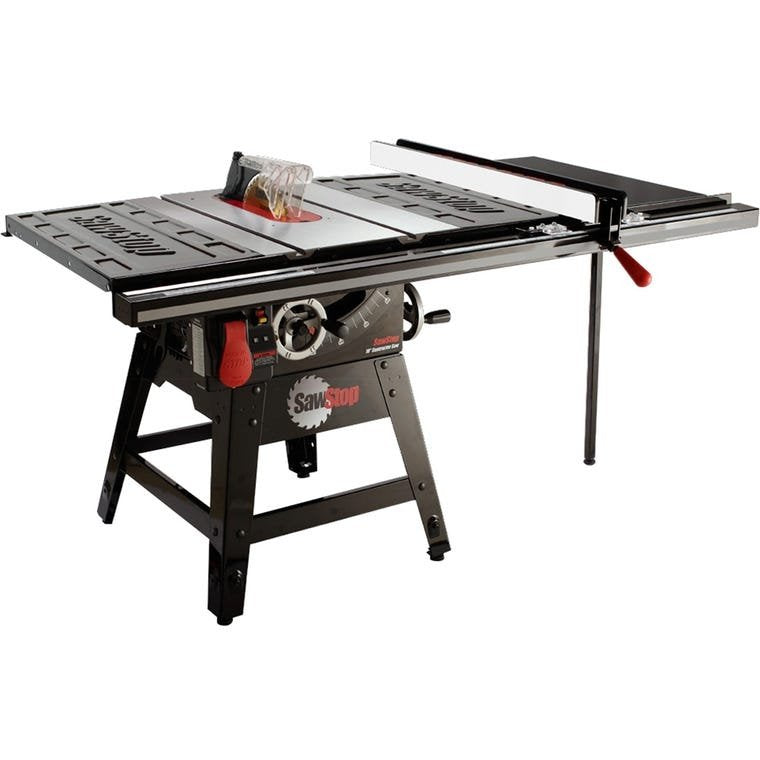

The SawStop® 110V, 1.75HP 10″ Professional Contractor Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s® legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Contractor Saw is engineered to be the cornerstone of a home shop. Mobile base sold separately (#22948).
More Information
| Brand |
SawStop |
| Manufacturer Part Number |
CNS175-TGP236 |
| Tech Spec |
- Motor: 1.75 hp, 1 phase, 110 V, 14 A
- Weight: 225 lbs (table saw only)
- Max. rip, right of blade: 36″
- Cabinet footprint: 19 3/8″W x 19 3/8″D
- Cast iron table: 20″W x 27″D, 44″W x 27″D (w/ extension wings)
- Stamped steel extension wing: 12″W x 27″D
- Blade: 40-tooth, professional grade, 5/8″ arbor
- Blade diameter: 10″
- Blade tilt: Left
- Blade kerf: 0.118″ (3mm)
- Blade plate thickness: 0.078″ (2mm)
- Max. depth of cut, blade at 0°: 3-1/8″
- Max. depth of cut, blade at 45°: 2-1/4″
- Max. rip, left of blade: 12″
- Dado diameter: 8″ (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16″
- Arbor diameter at blade: 5/8″
- Main bearing size: 62mm OD x 30mm ID
- Second bearing size: 52mm OD x 25mm ID
- Table in front of blade (max. elevation): 10-1/4″
- Table behind blade (max. elevation): 7-1/2″
- Arbor runout: 0.001″ Maximum allowable runout
- Blade lateral movement over full elevation range: 0.006″ Maximum
- Table flatness measured diagonally: 0.010″ Maximum gap
- Overall table and extension wing flatness: 0.025″ maximum gap
- Blade alignment with miter slot: 0.010″ Maximum displacement
- Deviation of miter gauge indexing stops from actual: 0.25°
- Alignment between spreader and blade: 0.010″ Maximum difference
- Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep
- Riving knife / splitter thickness: 0.078″ (2mm)
- Blade guard: polycarbonate, extends only 5/8″ to right of blade
- Insert: zero clearance, steel core, ABS surfaces
- Hand wheels: 7″ diameter, cast iron with chrome handle
- Belts: 2 V-ribbed belts – arbor belt is static dissipative
|
