ShelterCoat® shelters and garages are the ideal compact storage solution for ATV’s, lawn and garden equipment, small tractors, patio furniture, pool supplies, tools and equipment and bulk storage. Choose from the largest selection of premium powdercoated steel frame, fabric shelters in the industry! With THOUSANDS of choices we have a shelter to custom fit any storage need at an affordable price.
| Standard 9 oz. Cover | Heavy Duty 14.5 oz. Cover | Ultra Duty 21.5 oz. Cover |
|---|---|---|
| UV Treated | UV Treated | UV Treated |
| 100% Waterproof | 100% Waterproof | 100% Waterproof |
| 1-Year Prorated Warranty | 10-Year Prorated Warranty | 15-Year Prorated Warranty |
- Frame constructed of heavy duty 1-5/8 in. diameter steel
- Premium powder coat finish protects frame from corrosion and rust
- Ripstop tough advanced engineered polyethylene fabric cover is UV treated inside, outside, and in between. Heat welded seams, not stitched, are 100% waterproof.
- ShelterLock stabilizers at every rib connection for rock-solid strength and stability

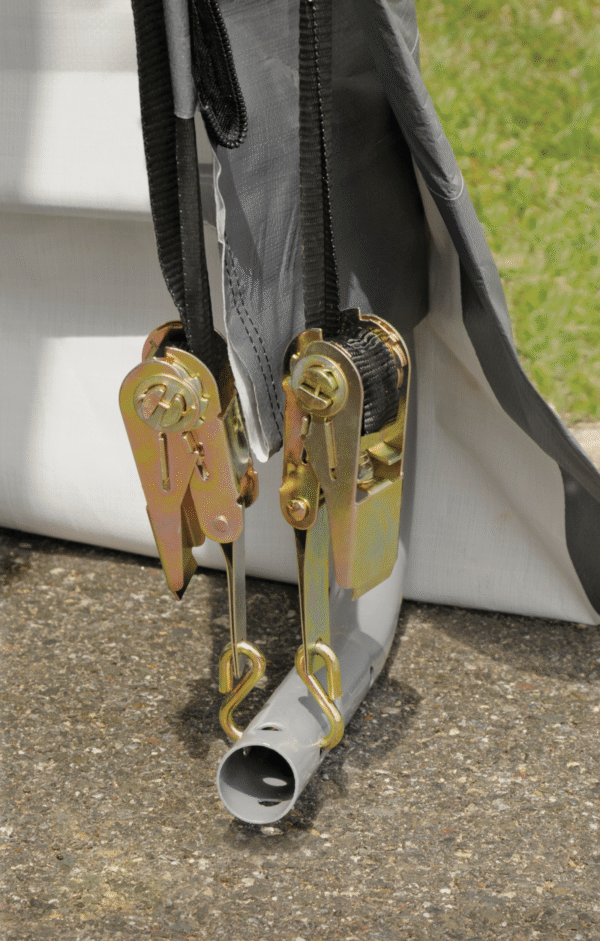

- Ratchet Tite tension system and Easy-Slide cross rails keep the cover smooth and taut
- Bolt-together hardware at every connection point ensures maximum strength and durability
- Universal steel foot plates for easy and solid connection to ground anchors, cement, or pony walls
- Manufacturer recommends one anchor per leg – see included Anchor Guide for more information.
- ShelterCoat round garages are wind and snow load rated. Wind and snow loads given are for reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied, fully enclosed building. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser.
| Product Details | |
|---|---|
| SKU | 71332 |
| Details | |
| Brand | ShelterLogic |
| Series | ShelterCoat |
| Roof Type | Round |
| Material | Standard Polyethylene 9 oz 1-Year Warranty |
| Color | Gray |
| Frame Color | Gray |
| Door Type | 2 Double Zippered Doors, Front and Rear |
| Assembly Required | Yes |
| Hardware Kit | Yes |
| Included Items | Frame, Cover, Hardware |
| Dimensions | |
| Width | 12 ft. |
| Length | 20 ft. |
| Height | 8 ft. |
| Total Storage Area | 220 sq. ft. |
| Total Storage Volume | 1401 cu. ft. |
| Rib Tubing Diameter | 1.65 in. |
| Assembled Exterior Dimensions Width | 137.6 in. |
| Assembled Exterior Dimensions Depth | 239.1 in. |
| Assembled Exterior Dimensions Height | 98.2 in. |
| Assembled Interior Dimensions Width | 134.3 in. |
| Assembled Interior Dimensions Depth | 235.8 in. |
| Assembled Interior Dimensions Height | 96.6 in. |
| Door Opening Width Top | 66 in. |
| Door / Entrance Width Bottom | 114 in. |
| Door / Entrance Height Outside | 81 in. |
| Wall Height | 59.5 in. |
| Peak Height | 37.93 in. |
| Warranty/Certifications | |
| Warranty | 1 Year Limited |
| Wind Speed Rating | 90 MPH |
| Snow Load Rating | 40 PSF |
| Water-Resistant | Yes |
