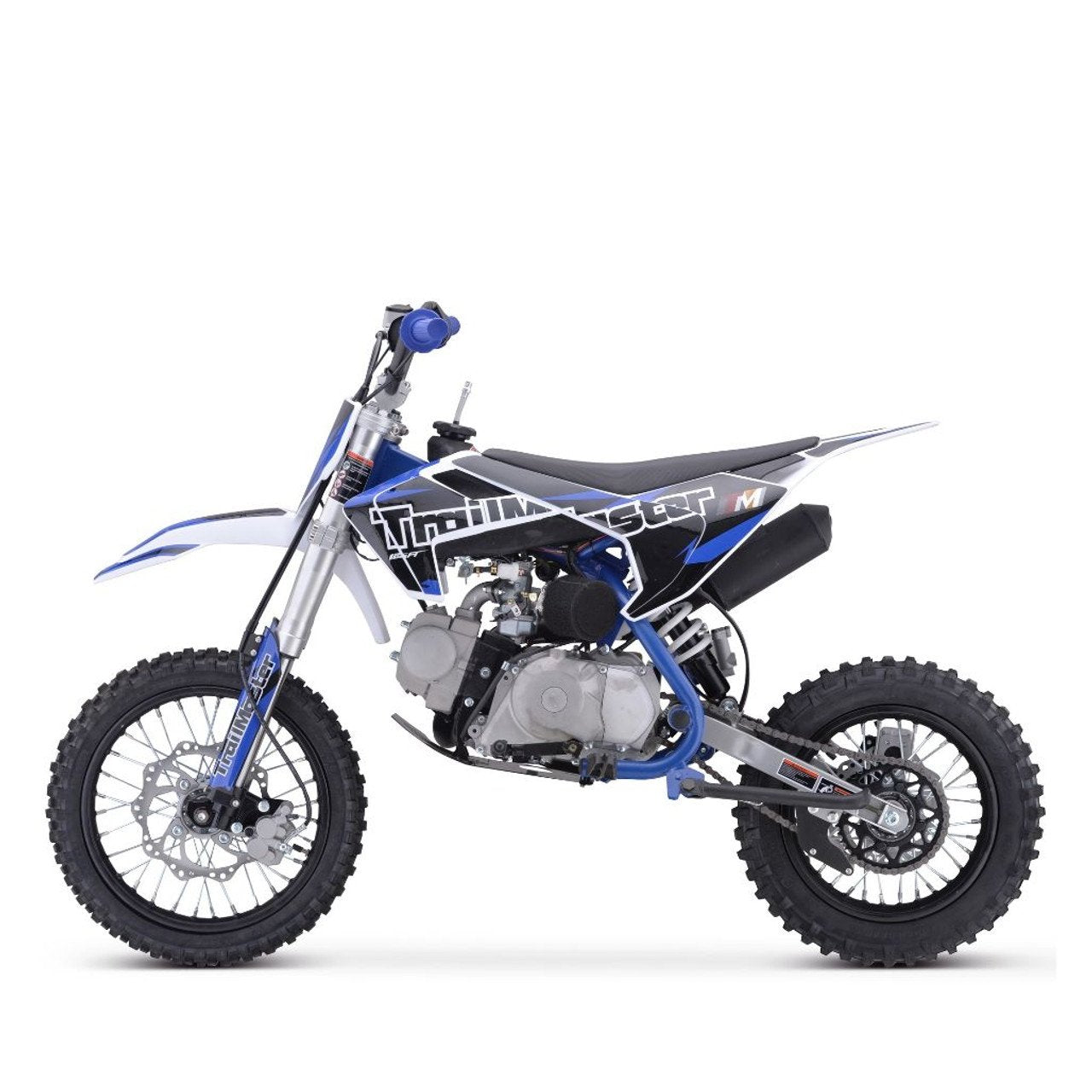

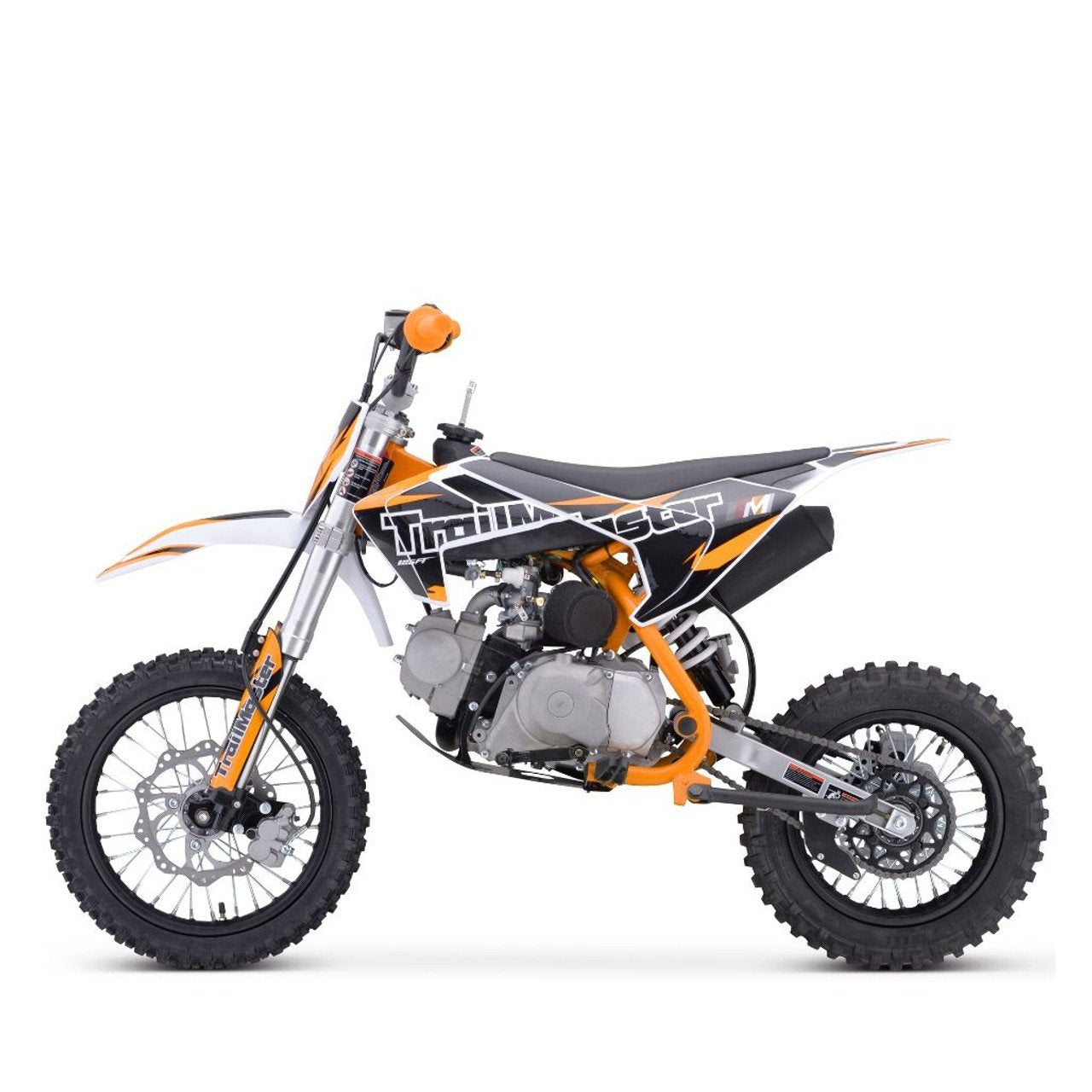

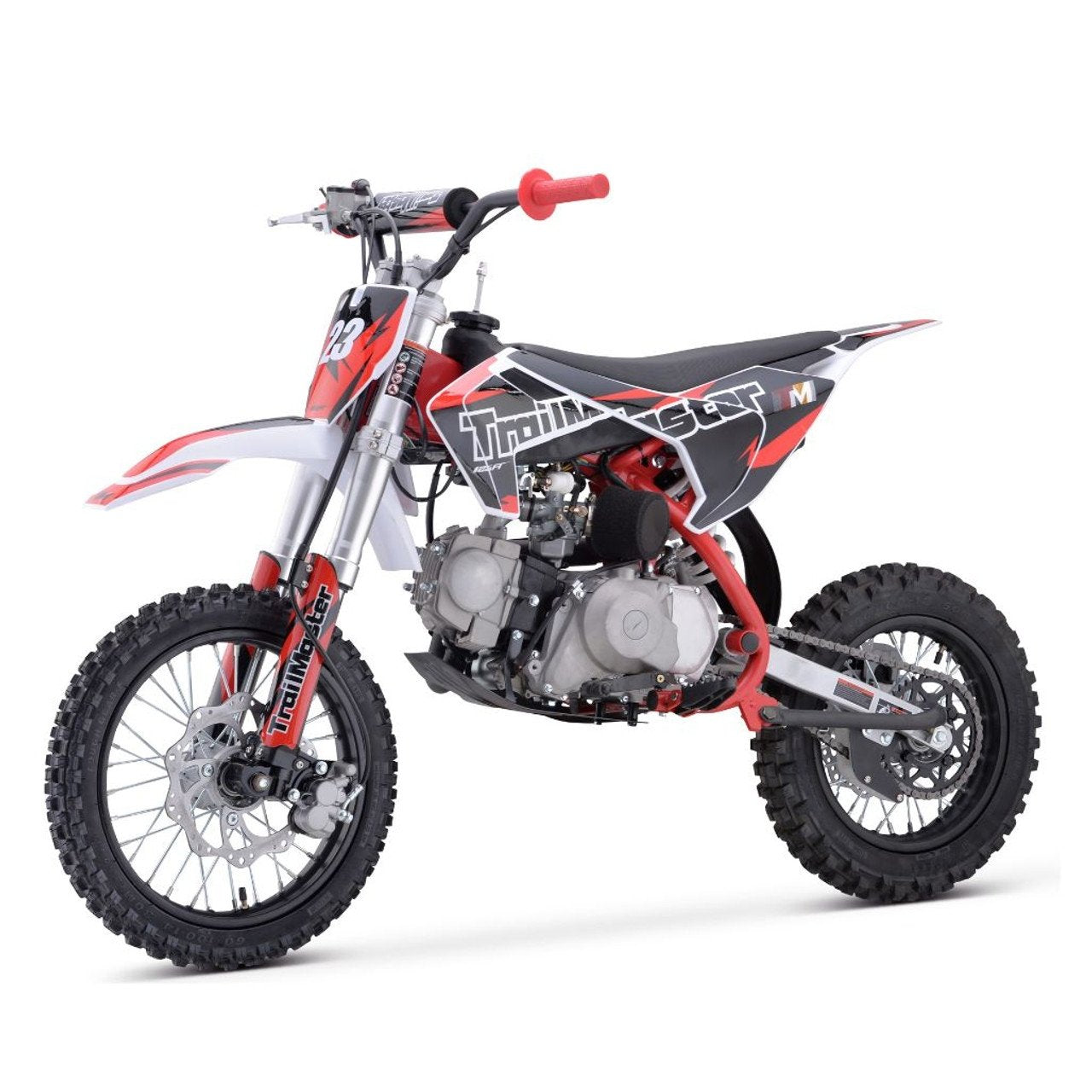

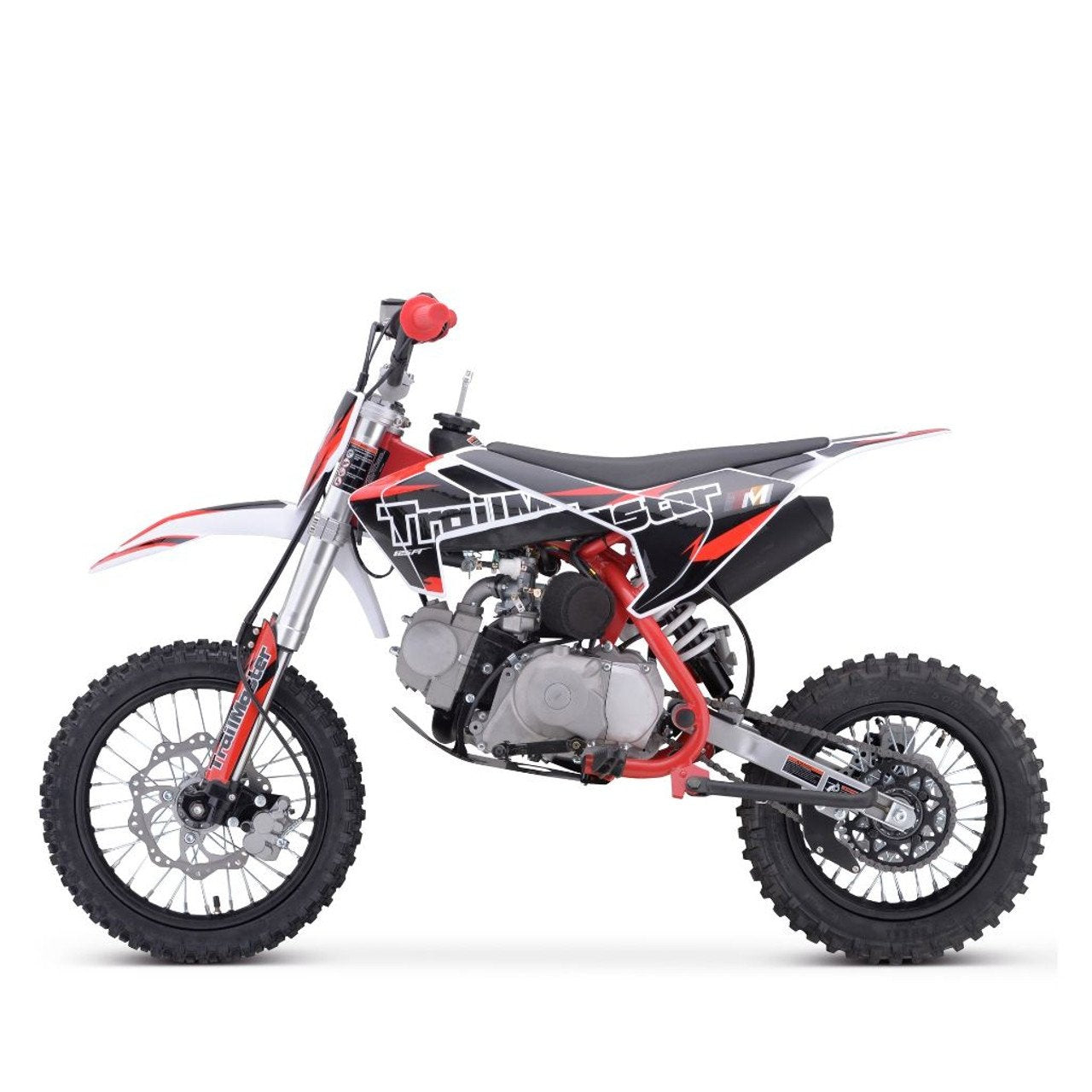

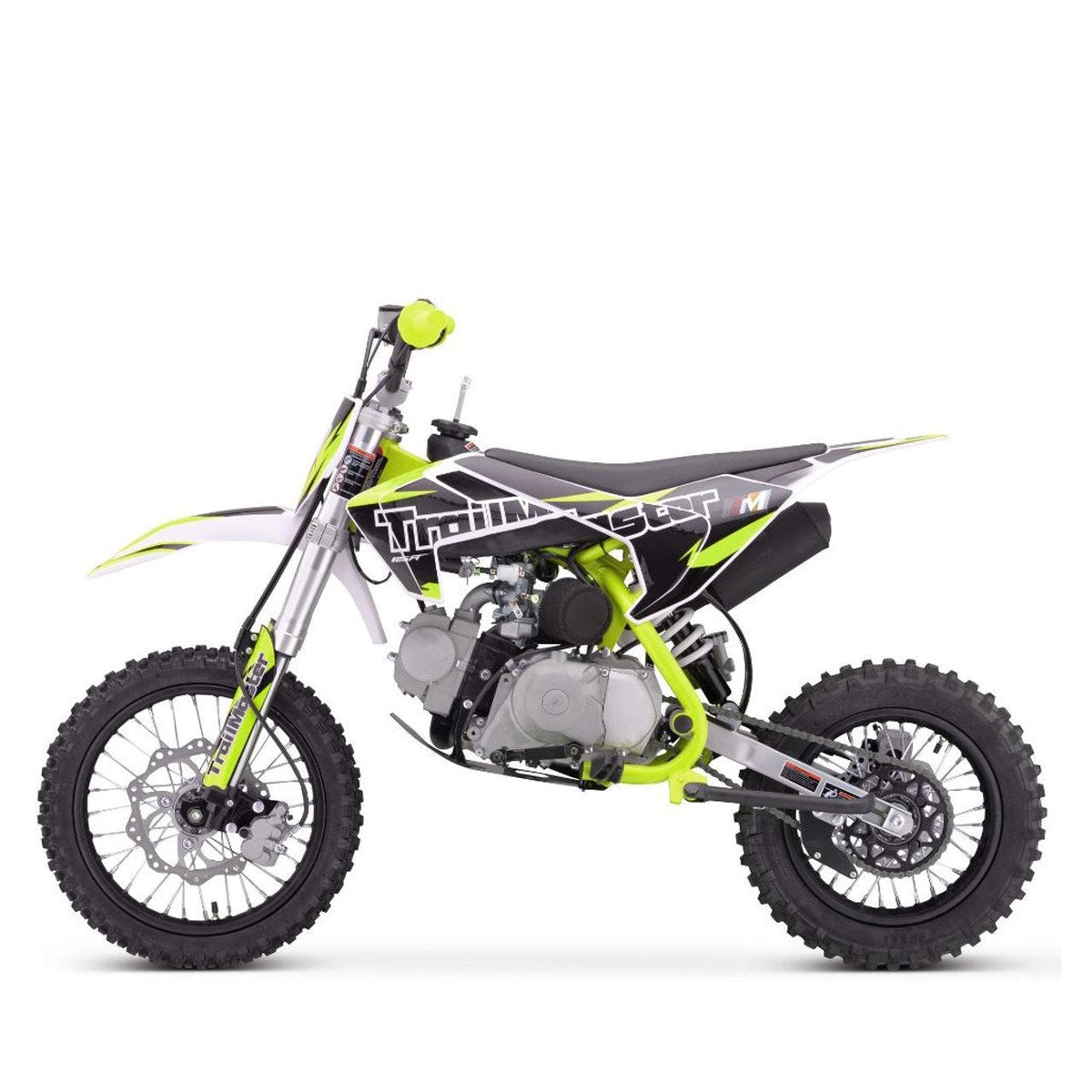

Introducing the TrailMaster 125cc Dirt Bike TM 23-125, a fantastic dirt bike that’s perfect for juniors and comes equipped with both electric and kick start. With a powerful 125cc 4-stroke engine that can generate up to 8.3hp, this bike can reach top speeds of around 45 MPH and has a comfortable seat height of 29″. Choose from a variety of colors such as red, blue, green, and orange. The TM23-125 boasts a 4-speed automatic (no clutch) transmission with front and rear disc brakes, and a heavy-duty frame that is built to last. It’s a surefire hit among dirt bike enthusiasts! The bike’s full motocross ergonomics and race suspension system make it easy to handle and navigate through any terrain with ease. Thanks to its electronic CDI ignition, kick-starting the TM23-125 is a breeze, and the bike runs smoothly in all gears with a broad, even power band. Plus, at a weight of only 161 pounds, the 125cc engine can propel the motorcycle to speeds of up to 45 miles per hour. Get ready to experience the thrill of the ride with the TM 23-125!
Features:
- Electric Start with Kick Start back up
- Semi-Automatic, 4 Gear Transmission
- 45mph Top Speed
General Information:
- Engine Type ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
- Displacement 124ml
- Max Power 8.3hp
- Max Torque 9.0(1±10%/ 5000（1±5%）N.m/r/min
- Compression Ratio 9.6:1
- Shift Type N‐1‐2‐3‐4, Four‐Gears, Automatic Clutch
- Start Type Electric & Kick Start
- Ignition CDI
- Min. Fuel Consumption:≤367g/kw.h
- Max Range: ≤10.5 mile
- Engine Oil #： SJ5W一 30
- Transmission: Chain Drive; #428，14/41T
Size Data:
- Overall Size(LxWxH)/60.24″X28.74″X39.76″
- Wheel Base 41.54″
- Seat Height 29.13″
- Ground Clearance 10.63″
- Fuel Capacity 3.5L/0.92 Gal.
- Wheels: Steel1.6x14″/1.85x12″ Rims, Cast Hubs
- Tires: FT:60/100‐14 RR:80/100‐12
Frame/Suspension/Brake/Wheel System:
- Frame: Cradle Steel Tube Frame
- Front Fork Telescopic ￠33*650mm Forks, Non‐Adjustable
- Rear Shock￠10*270mm, Non‐Adjustable
- Swing‐Arm Steel Tube 12inch
- HandleBar Aluminium Crossbar, L=28.35″; Dia=0.87″
- Front Brake: Hydraulic Single Caliper, 220mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust: Steel Pipe with catalyst converter (EPA Standard)
- Packing Size 54.5″X14.8″X30″
- N.W/LBS 134.5 LBS
- G.W/LBS 161 LBS
